Agricultural Trailers
10T Dropside Trailer
Serious work trailer
A ten-tonne rated twin-axle dropside on a heavy-duty fabricated chassis. Double-skinned steel sides, hydraulic oil brakes, sprung drawbar and LED road lighting — then built around the way you work, in your colours.
Rated payload
10 tonne
Axles
Twin, 8-stud
Braking
Hydraulic oil
Drawbar
Sprung
Tyres
500/50-17
Sides
Double-skinned steel
Technical
Specification
The detail below is the framework the workshop builds from. Final figures are confirmed in writing with your quotation.

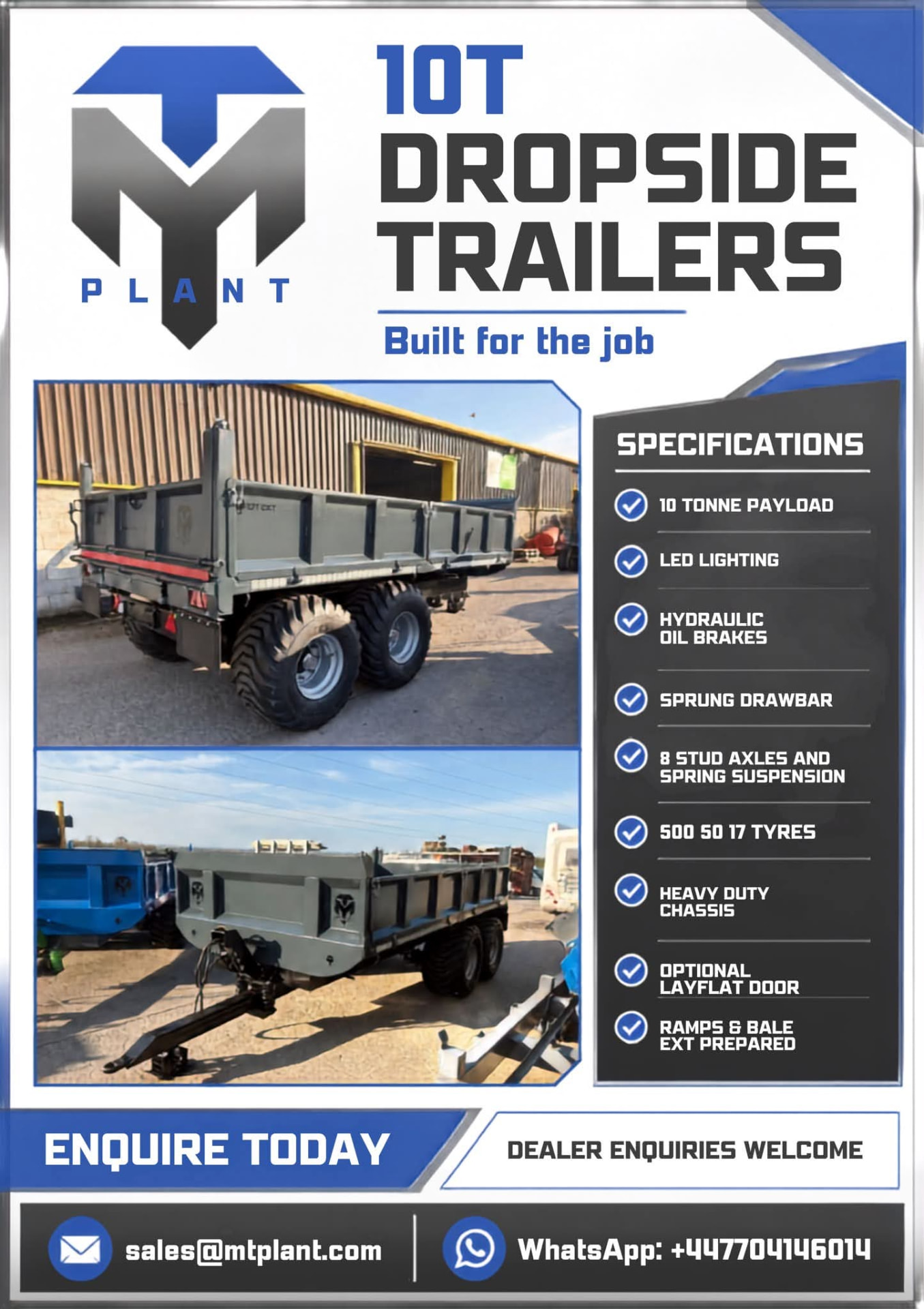

Promotional spec sheet
- Rated payload
- 10 tonne
- Body type
- Dropside, double-skinned steel sides
- Body size
- Approx. 14' x 7'9" (confirm on enquiry)
- Chassis
- Heavy-duty fabricated chassis
- Axles
- Twin axles, 8-stud
- Suspension
- Spring suspension
- Drawbar
- Sprung drawbar
- Braking
- Hydraulic oil brakes
- Tyres
- 500/50-17
- Lighting
- LED road lighting
- Doors
- Optional lay-flat door
- Preparation
- Prepared for ramps and bale extension
- Finish
- Shotblast, two-pack primer, top coat in your colour
Specifications are given in good faith from MT Plant's current build and promotional material and may be revised as builds develop. Weights, dimensions, axle and tyre fitment are confirmed in writing for your individual unit before manufacture.
Range
Build variants
Each variant is fabricated to order. Start from the closest one and change what you need in the configurator.
Standard 10T dropside
Double-skinned sides, standard rear door, hydraulic oil brakes and LED lighting — the everyday working specification.
Lay-flat door build
Rear door drops flat to the deck for loading machinery, bagged goods and awkward loads straight off the ground.
Bale extension build
Prepared for a bale extension so the same trailer carries bales through the season and stone the rest of the year.
Ramp-ready build
Chassis and rear arrangement prepared for ramps where mini diggers and dumpers travel on the same unit.
Configurable
Build options
Tick what you need in the configurator below. Anything not listed can be described in your own words — the workshop quotes from that.
- Lay-flat rear door
- Standard rear door
- Ramps
- Bale extension
- Sprung drawbar
- Hydraulic brakes
- LED lighting
- Rear lighting guard
- Mudguards
- Toolbox
- Custom paint colour
- Customer signwriting / decals
Where it works
Typical applications
Farms & contractors
Grain, stone, muck, machinery movement and general yard haulage through the season.
Plant hire fleets
Moving mini diggers, dumpers and equipment between yards and sites.
Construction sites
Hardcore, spoil and site materials on a chassis built for the weight.
Working yards & haulage
Daily-use trailer specification for operators who load it hard every day.
Before you order
Questions the team gets asked
If yours isn't here, message the workshop — you'll get a straight answer rather than a brochure.
- Can I have it in my own colours?
- Yes. MT Graphite Grey, MT Machinery Green, high-gloss black, MT Blue or any RAL colour you name. Signwriting and decals can be applied before delivery.
- What tractor do I need to pull it?
- Ten tonnes loaded is a serious weight. Tell the team the tractor make, model and hydraulic arrangement and the braking and drawbar specification is matched to it.
- What is the lead time?
- Every unit is fabricated to order, so the build slot and delivery date are confirmed in writing with your quotation rather than advertised as a fixed figure.
- Do you deliver?
- Delivery across Northern Ireland, the Republic and mainland UK is arranged on request, or you are welcome to collect from the Banbridge workshop.
Configure & quote
Specify your 10t dropside trailer
The build summary updates live as you configure. Finish with a free formal build quote, or reserve a fabrication slot with a £500 deposit.
Dimensions & quantity
Paint colour
Choose oneTwo-pack finish. Custom RAL is available — give the number in your notes.
Tyre fitment
Choose oneBrake system
Choose oneDoor & side options
Choose anyBuild extras
Choose anyYour details
